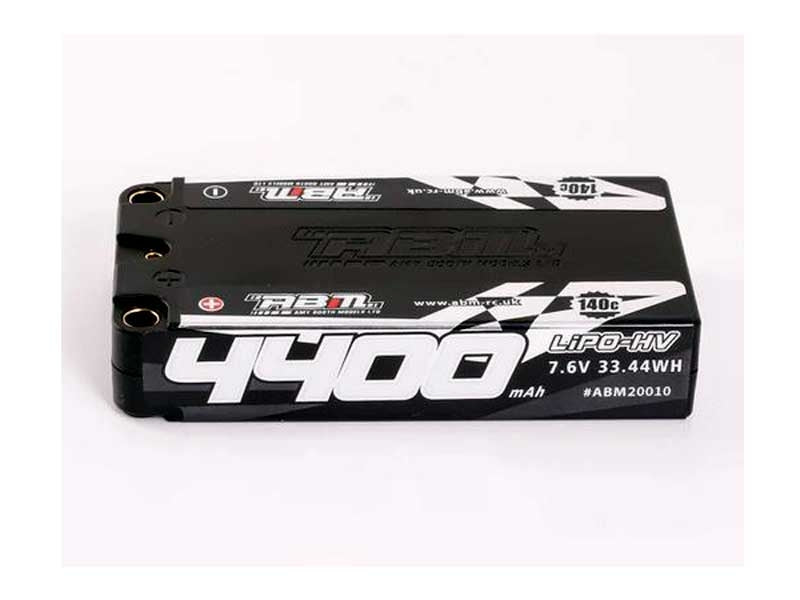

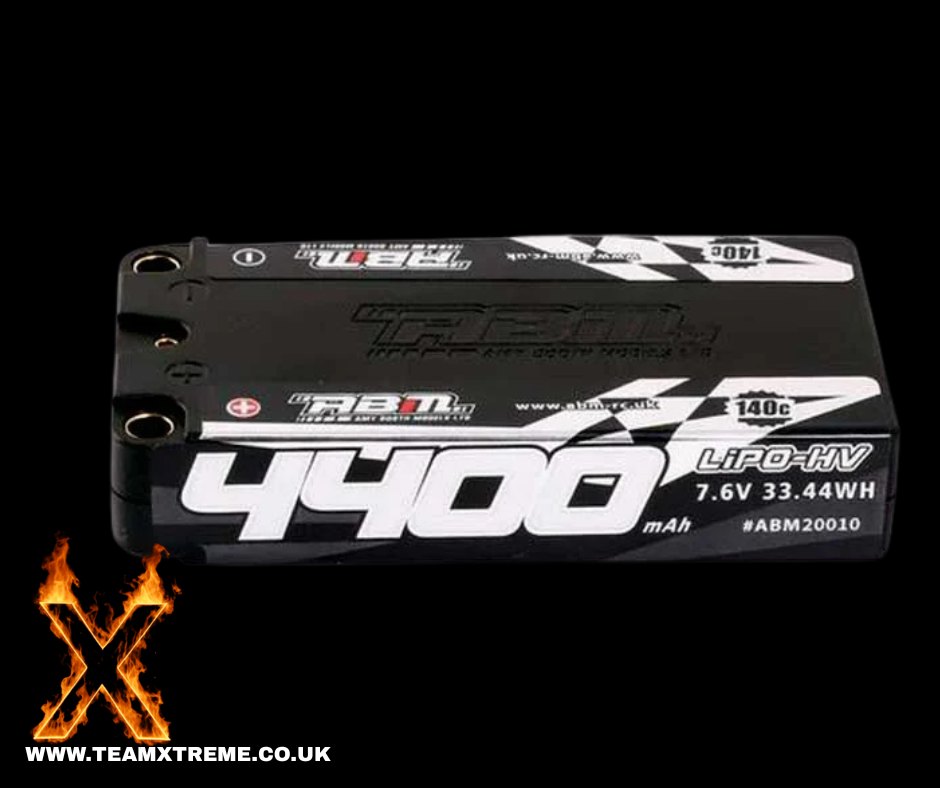

ABM-RC LiPo Racing Battery 4400mAh 7.6V 140C 5mm BRCA Approved

ABM 4400 LCG Shorty 7.6v Lipo-HV 140c 5mm connectors BRCA and EFRA legal for 2025 onwards

Dimension and Visual

• Configuration: Shorty LCG Style
• Battery pack weight: 154 ± 6.16g
• Length: 92.5mm +0/-1mm
• Width: 46.8mm +0/-1mm
• Thickness: 18.5mm +0/-1mm
• Casing material: ABS+PC
• Casing nominal thickness: 1.0mm
• Casing sealing: Sonic-welding
• Discharge point: dia. 5mm tubes (positive / negative terminals)
• Charging port: dia. 2mm tube balance

Specification

• Nominal Voltage: 7.6V
• Nominal Capacity: 4300-4500mAh
• Nominal Impedance: .9-1.3 mOhm per cell
• Charging method: CC/CV mode (high quality LiPo chargers only)
• Charge cutoff voltage: 8.40V ±0,05V (BRCA rules allow 4.20v per cell)
• Charging current: 4.4 amps(typical)
• 2C charging possible, with special attention for accurate cutoff
• Discharge cutoff voltage: 6.2V ±0,05V
• Discharge continuous: 70c
• Discharge pulse (max): 140c (less than 6sec. for each pulse)
• Discharge Temp range: -20~+60 deg-C
• Charging Temp range: 0~ +45 deg-C
• Storage Temperature: -20~+45 deg-C
• Storage Humidity: 65 ±20% RH
